Light-weight design from one source

Light-weight design in automotive construction is gaining in importance. EMS-GRIVORY is a renowned specialist company in the field of metal replacement, but two other business units of the EMS Group – EMS-GRILTECH and EMS-EFTEC – also provide innovative and high-quality products for this application field.

Whether high-performance polymers or reinforcing tapes for clever metal replacement, efficient binding agents for stabilisation of thermoset composites or intelligent adhesive systems for plastic components: EMS is a one-stop supplier.


EMS-GRIVORY is the specialist for metal replacement using high-performance polyamides to achieve weight and cost savings. Whether materials for extremely dimensionally stable parts, highest surface quality, excellent stiffness and strength or the high-temperature operating range, products from this Swiss polyamide manufacturer are well-known in the market and have proven their value for many years. Above all the new high-heat stabilized and long-fiber reinforced polyamides ensure that light-weight design using high-performance polymers is now possible in an increasing number of areas of automotive construction. These high-performance polymers withstand high thermal and mechanical stressing but have a low density and are easy to process. Coupled with clever component optimisation – also a field where EMS-GRIVORY is specialised – striking weight and cost advantages can be achieved.




Improved handling of thermosets

When injection-moulding components reach their limits, thermosetting composites are the materials of choice. One well-known problematic in the manufacture of thermosetting composite components is the shifting of fibers inside the component mould or during manufacture of the preform. If the fibers do not lie at exactly the intended position, an immediate loss of stability is caused. Binding agents are used to prevent this. Under the trade Griltex CE, EMS-GRILTECH supplies specifically developed polymers which make handling much easier. Developed for an epoxy matrix, this product can also be used with other thermoset materials such as two-component polyurethane, phenol or cyanic ester resins. Griltex CE stabilises fiber structures or tapes and prevents shifting of the fibers in resin transfer moulding (RTM) processes. The product does not need a curing time and it is possible that several fiber layers can be bonded onto each other and processed in only one step.



Two in one

But Griltex CE is more than just a binding agent; at the same time it is a toughening agent which strikingly improves mechanical properties of the composite component. Griltex CE exhibits maximum compatibility with epoxy resins, thus creating a strong bond. The residual fracture strength values in compression after impact tests (CAI) increase by up to 65% and the fracture surface is significantly smaller. Shear strength measured in interlaminate shear strength tests also increases by 33%.
This means that Griltex CE offers a double advantage: It makes manufacture of thermoset composite components more simple and, at the same time, significantly increases their mechanical properties.

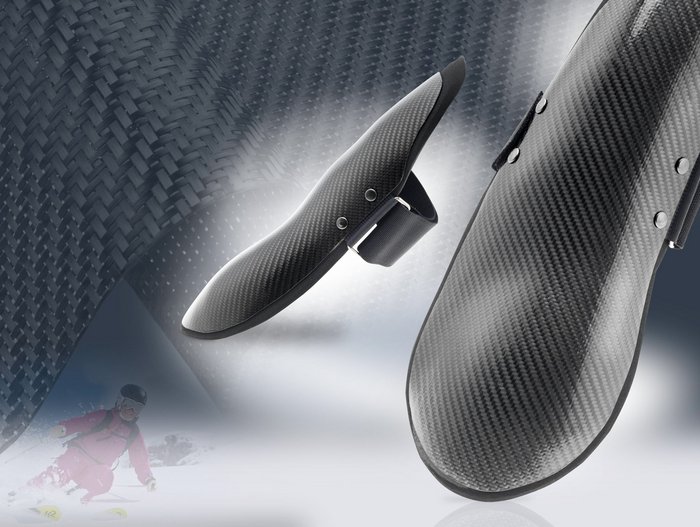

Application example for Griltex CT: Arm protection for skiers, made of carbon fibers and the high-performance thermoplastic material made by EMS-GRILTECH.

Attractive alternative

EMS-GRILTECH even goes a step further. With Griltex CT, it offers high-performance thermoplastic materials which can replace the cost and time intensive thermoset systems. Composite fiber-reinforced sheets can be pre-manufactured using Griltex CT and fiber material. During a further processing step, these sheets are heated for a short time and can then be shaped into any required form. As composite parts made using this process require no curing, and thus allow very short cycle times for manufacture of composite components, they are extremely interesting for bulk serial production.

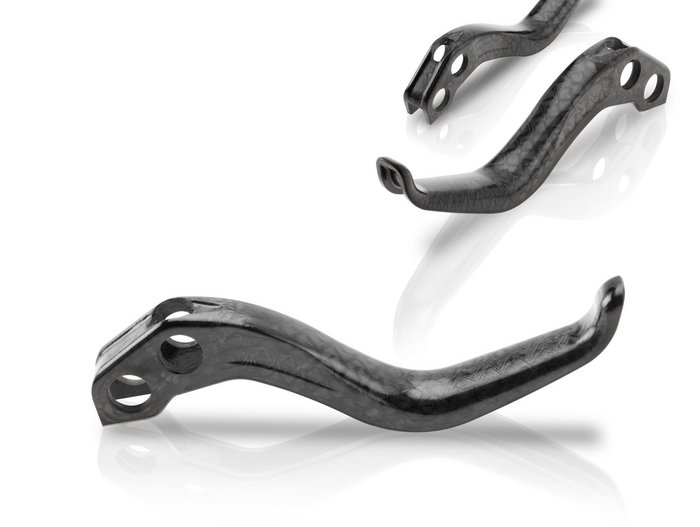

Application example for Griltex: Bicycle brake lever made of a carbon composite material, the fiber structure of which was stabilised using Griltex.


Innovative adhesive systems

One consequence of increasing use of high-performance polyamides and composite materials to achieve weight reduction is the need for new innovations in bonding technology. In contrast to aluminium, polymer or composite components can no longer be bonded using conventional methods and welding is not possible due to the wide variety of materials to be joined. As plastic materials are extremely sensitive to local stressing, no local bonding systems such as rivets can be used. The solution to this problem is large-area bonding with special adhesives. EMS-EFTEC is market leader in this field.



Tailor-made solutions possible

Under the trade name EFBOND, EMS-EFTEC offers a series of adhesives which have been especially developed for this kind of bonding. The two-component systems are based on polyurethane and are characterised by the fact that the reaction time can be changed to suit each individual component and process requirement. The curing process is lengthened or shortened depending on the amount of B component used in the mixture and in this way, can be adjusted to exactly fulfil the requirements of the component involved.
This allows extreme freedom of use as one and the same adhesive system can be used to satisfy a wide range of different requirements.

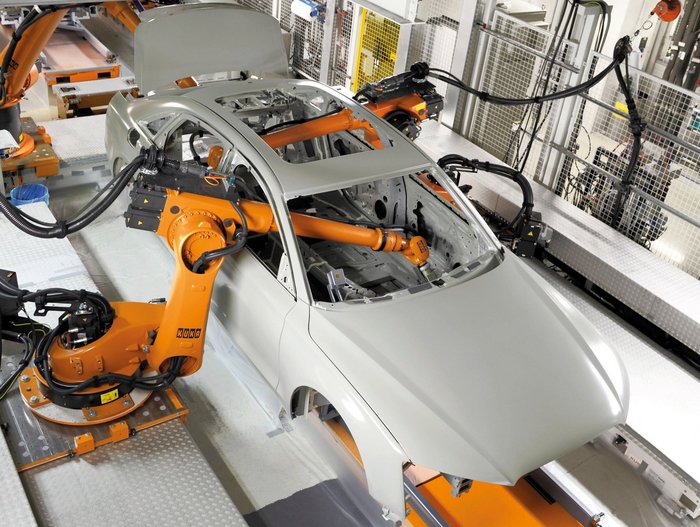

The new adhesives from EMS-EFTEC can be adjusted to exactly fulfil the requirements of the component involved.
