Grilon is perfectly suited for processing using injection moulding, extrusion and extrusion blow-moulding methods.
Due to their excellent properties, these materials can be used in a wide variety of application segments such as the automotive industry, electrical / electronic technology, sport and leisure as well as in mechanical engineering.
The various Grilon grades differ from each other according to the type and composition of the basic polymers as well as their modification with stabilisers, processing aids and reinforcing materials (minerals, glass, carbon and steel fibers).
Grade families
| Grilon A | PA 66 |
| Grilon B | PA 6 |
| Grilon TS | PA 66 + 6 |

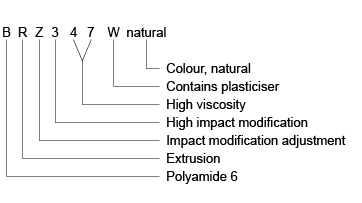

| Block 1 | A | polyamide 66 |
| B | polyamide 6 | |
| TS | PA66 + PA6 alloy | |
| Block 2 | S | standard injection moulding grade |
| Z | impact-modified | |
| R | extrusion/raw | |
| F | film quality | |
| EB | extrusion blow-moulding grade | |
| BM | barrier polyamide | |
| BT | alloy | |
| MB | masterbatch | |
| Block 3 | 1.. | slight impact modification |
| 2.. | impact-modified | |
| 3.. | high impact modification | |
| .23 | low viscosity | |
| .34,.40 | higher viscosity | |
| .47,.50 | high viscosity | |
| Block 4 | S | improved surface quality |
| H | specially heat stabilised | |
| UV | UV stabilised | |
| VO | self-extinguishing as per UL 94 | |
| FR | flame-retardant | |
| HM | adhesion-modified | |
| W | containing plasticiser | |
| EC | electrically conductive | |
| LF | low sliding friction | |
| FA | suitable for foodstuffs | |
| LW | suitable for laser marking and lettering | |
| ELX | elastomer | |
| X | special modification |

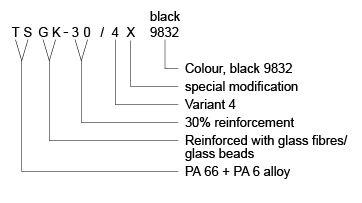

| Block 1 | A | polyamide 66 |
| B | polyamide 6 | |
| TS | PA66 + PA6 alloy | |
| Block 2 | G | reinforced with glass fibers |
| K | reinforced with glass beads | |
| M | reinforced with minerals | |
| C | reinforced with carbon fibers | |
| GM | reinforced with glass fibers/minerals | |
| GK | reinforced with glass fibers/glass beads | |
| EB | extrusion blow-moulding grade | |
| ..Z | impact modification adjustments | |
| GL | reinforced with glass fibers/long fiber | |
| Block 3 | 10 to 60 | 10 to 60% reinforcement |
| Block 4 | S | improved surface quality |
| H | specially heat stabilised | |
| UV | UV stabilised | |
| VO | self-extinguishing as per UL 94 | |
| FR | flame-retardant | |
| HM | adhesion-modified | |
| W | heat ageing stability | |
| EC | electrically conductive | |
| LF | low sliding friction | |
| FA | suitable for foodstuffs | |
| LW | suitable for laser marking and lettering | |
| ELX | elastomer | |
| X | special modification |
| Modification | PA 6 | PA 66 | PA 66+6 | |
|---|---|---|---|---|
| Injection molding | Non-reinforced | X | X | X |
| Non-reinforced, impact-modified | X | X | X | |
| Reinforced with glass fibers | X | X | X | |
| Reinforced with glass fibers, impact-modified | X | X | X | |
| Reinforced with glass fibers, adhesion-modified | X | X | ||
| Reinforced with glass beads, minerals, hybrid | X | X | ||
| Self-extinguishing | X | X | X | |
| Sliding bearing materials, conductive | X | X | ||
| LFT, reinforced with long fibers | X | |||
| Extrusion | Flexible grades | X | ||
| Extrusion blow-moulding materials | X |
